Trim conventions and control stick wire assignments

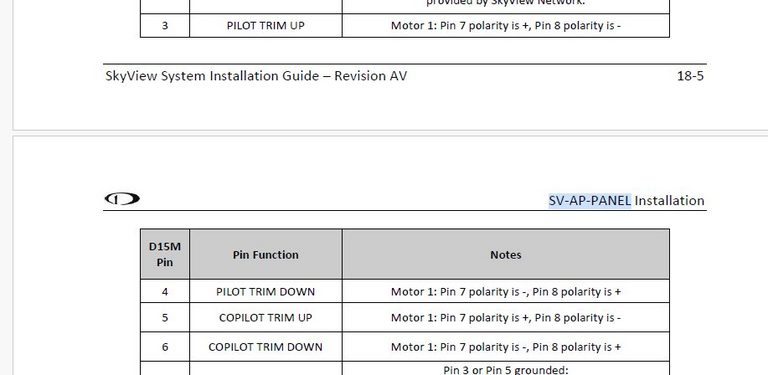

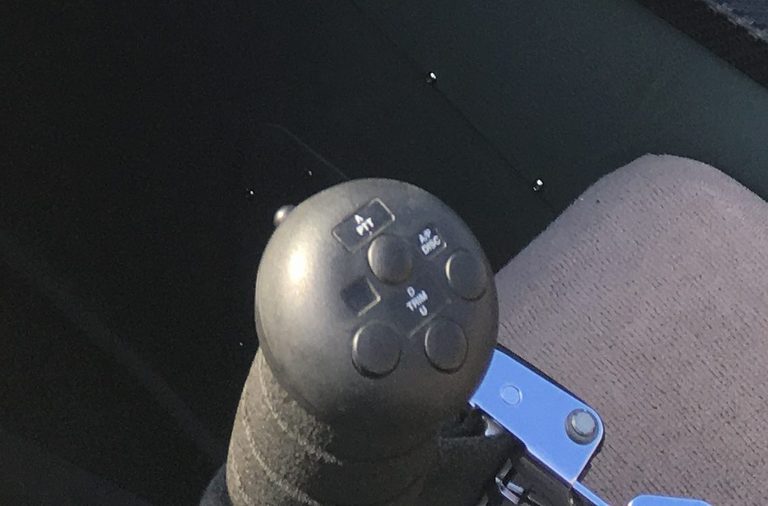

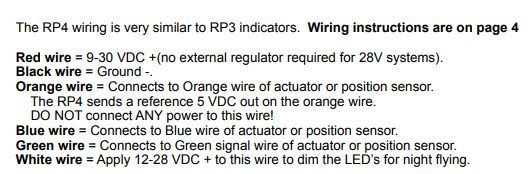

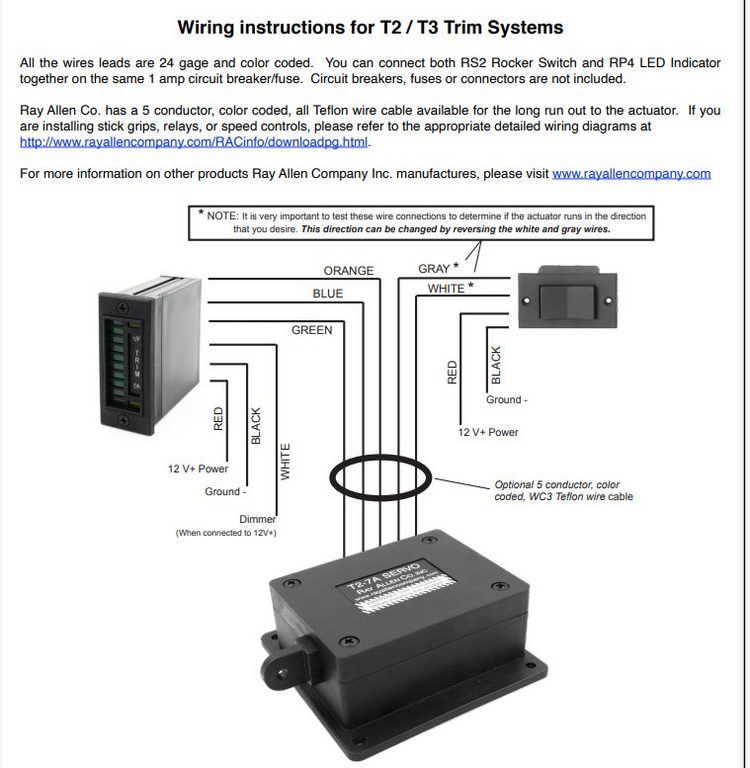

Ray Allen G405 sticks

Left button - AP level - blue wire - combine before passing to the midsection connector

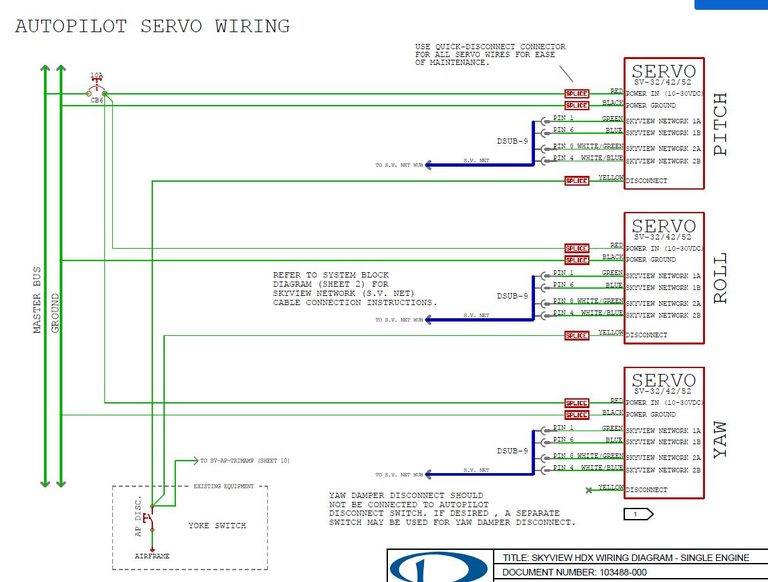

Right button - AP disconnect - orange wire - combine and pass directly to the AP servos disconnect wire (yellow) before passing to the midsection connector to reach the trimamp.

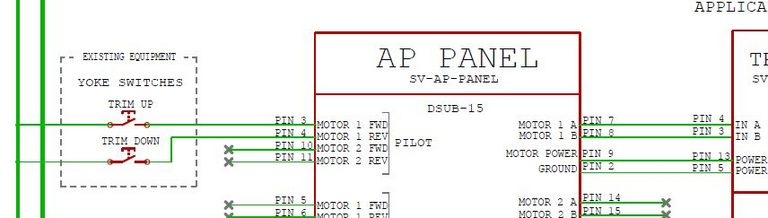

Top button - Trim nose down - red wire - route left and right hand sides separately through the midsection connector

Bottom button - Trim nose up - green wire - route left and right hand sides separately through the midsection connector

Front button - PTT- white wire - route left and right hand sides separately through the midsection connector

Common ground wire - black wire - combine before passing to the midsection connector

Assignments modelled on C152 trim wheel, but also consistent with an existing club Sling 2
